產品概述/Product overview |
刮板式薄膜蒸發器是利用高速旋轉將液體分布成均勻薄膜而進行蒸發或蒸餾的一種蒸發、蒸餾設備，也可進行脫臭、脫泡反應及加熱、冷卻等單元操作，可適用于中、西制藥、食品、輕工、石油、化工、環保等行業。
Scraper film evaporator is an evaporation and distillation equipment of high efficiency which is used to distribute liquid and form uniform thin film for evaporation or distillation by high-speed rotation. It also has functions as deodorization, defoaming, heating and cooling unit operations, etc. It can be widely applicable to Chinese and Eastern pharmaceutical, food, light industry, petroleum, chemical industry, environment protection, etc. |
|
 |
產品性能與特點/Product performance and features
本設備采用離心式滑動溝槽轉子，在流量小的情況下也能形成薄膜，在筒體蒸發段內壁表面附著處理液中的淤積物可被活動刮板迅速移去，和固定間隙的刮板蒸發器相比，蒸發量可提高40-69%.
This equipment adopts centrifugal sliding groove rotor. Membrane can be formed under very low flow. The sediment contained in treatment liquid attached on inner wall surface in evaporation section of the cylinder can be quickly removed by movable scraper. Compared with scraper evaporator of fixed clearance, the evaporation amount can be increased by 40-69%.
|
|

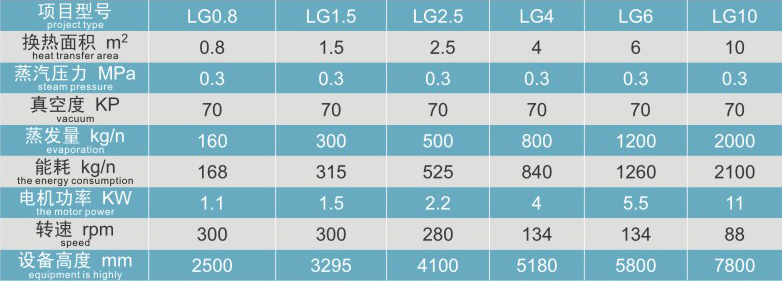

主要技術參數參考表/Reference table of main technical parameters |
|
